Ace Powerworks Vault 2T

Overview
Features
Request Quote
pv-m5tt71

27.56″ x 17.26″ x 3.42″ (700 x 438.5 x 87mm)

Ace Powerworks Vault 2T

Model: PV-M5TT71

The Ace Powerworks Vault 2T is a high-performance 2U rackmount warm storage server engineered for enterprise environments that require large-scale, cost-efficient data storage with advanced compute capabilities.
  • 16 DIMM slots | DDR5 RDIMM & 3DS RDIMM
  • Speeds up to 5600 MHz (1DPC) or 4400 MHz (2DPC)
  • Up to 2,048GB capacity
  • 8 NVMe U.2 + 10 2.5" SATA hot-swap, tool-less drive bays
  • 2 2.5" SATA hot-swap, tool-less drive bays @ rear
  • PCIe 5.0 x16 OCP v3.0 LAN mezzanine slot
  • 2 NVMe M.2 2280 slots
  • 2 10GBase-T LAN + 1 dedicate 1000Base-T IPMI ports
  • (1+1) CRPS

Enterprise-Grade Performance

Powered by dual Intel Xeon Scalable processors with support for up to 2TB DDR5 memory.

Massive Storage Flexibility

Supports up to 22 drives across NVMe, SATA, and SAS interfaces for tiered storage architecture.

Redundant & Efficient Power

Dual 1,200W CRPS power supplies (80+ Platinum) ensure uninterrupted uptime with high efficiency.

Built to Store. Ready to Scale.

Smart Storage for Demanding Workloads.

Where Performance Meets Capacity.

At its core, the Vault 2T supports dual 4th or 5th Gen Intel Xeon Scalable processors (LGA4677), with a maximum TDP of up to 350W per CPU, and features 16 DIMM slots capable of housing up to 2TB of DDR5 RDIMM or RDIMM-3DS memory—delivering unmatched bandwidth through 8 memory channels per CPU at speeds up to 5600 MHz.

Key Features

  • Dual Xeon Scalability

    Supports 4th and 5th Gen Intel Xeon Scalable processors (up to 350W TDP), ideal for compute-intensive applications and virtualization.

  • Ultra-Flexible Storage Options

    With 8x NVMe U.2, 10x hot-swap SATA bays, and 2x rear SATA, the Vault 2T is ready for structured tiered storage, backups, or high-speed caching.

  • Enterprise-Class I/O and Expansion with PCIe Gen 5

    Featuring 5 PCIe Gen 5 slots and a Gen 5 x16 OCP 3.0 mezzanine slot, the system supports ultra-fast interconnects and future-proof expansion—ideal for high-throughput networking cards, GPUs, or AI accelerators in data center environments.

  • Advanced Management & Redundancy for Mission-Critical Uptime

    The integrated Aspeed AST2600 BMC supports full IPMI 2.0 with iKVM and remote management, while dual 80 Plus Platinum CRPS power supplies (1+1 redundancy) and multi-sensor system monitoring ensure continuous, reliable operation in enterprise deployments.

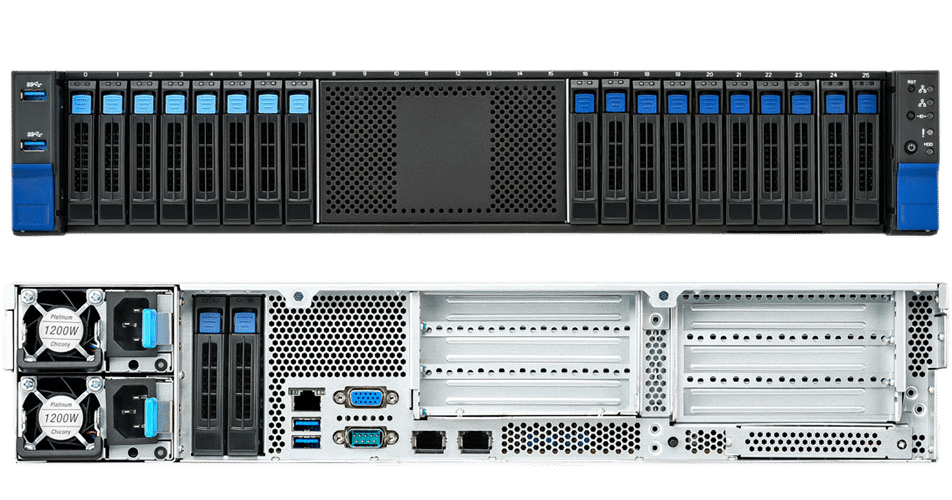

PV-M5TT71 Front and Rear

SPECIFICATIONS

Form Factor

2U Rackmount

27.56″ x 17.26″ x 3.42″ (700 x 438.5 x 87mm)

Dual Intel Xeon 4510
N/A
Front I/O:
– 1 x MIC-In
– 1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s) (Supports ESD Protection)
– 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection)
– 1 x Head Phone with MIC Jack

Rear I/O:
– 1 x DC-In Jack (Compatible with the 19V power adapter)
– 1 x D-Sub Port
– 1 x HDMI Port
– 1 x DisplayPort 1.4
– 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (Supports USB Type-C Alt Mode)
– 2 x USB 3.2 Gen1 Type-A Ports (Supports ESD Protection)
– 2 x USB 2.0 Ports (Supports ESD Protection)
– 1 x RJ-45 LAN Port with LED

Connectors:
– 1 x USB 2.0 Header
– 1 x Front Panel Header
– 2 x 4-Pin fan connectors (CPU, SYS)
– 1 x Internal Speaker Header (4-Pin)
– 1 x Audio Header (4-Pin)
1TB NVMe M.2
32GB DDR4-3200MT/s
– 120W/19V
– Input voltage: 100-240V AC, 50-60Hz
– Output Current 6.32A
