ACE POWERWORKS VAULT-JBOD TL

Overview
Request Quote

H: 6.96″ (177 mm) x W: 17.6″ (447 mm) x D: 43.3″ (1099 mm)

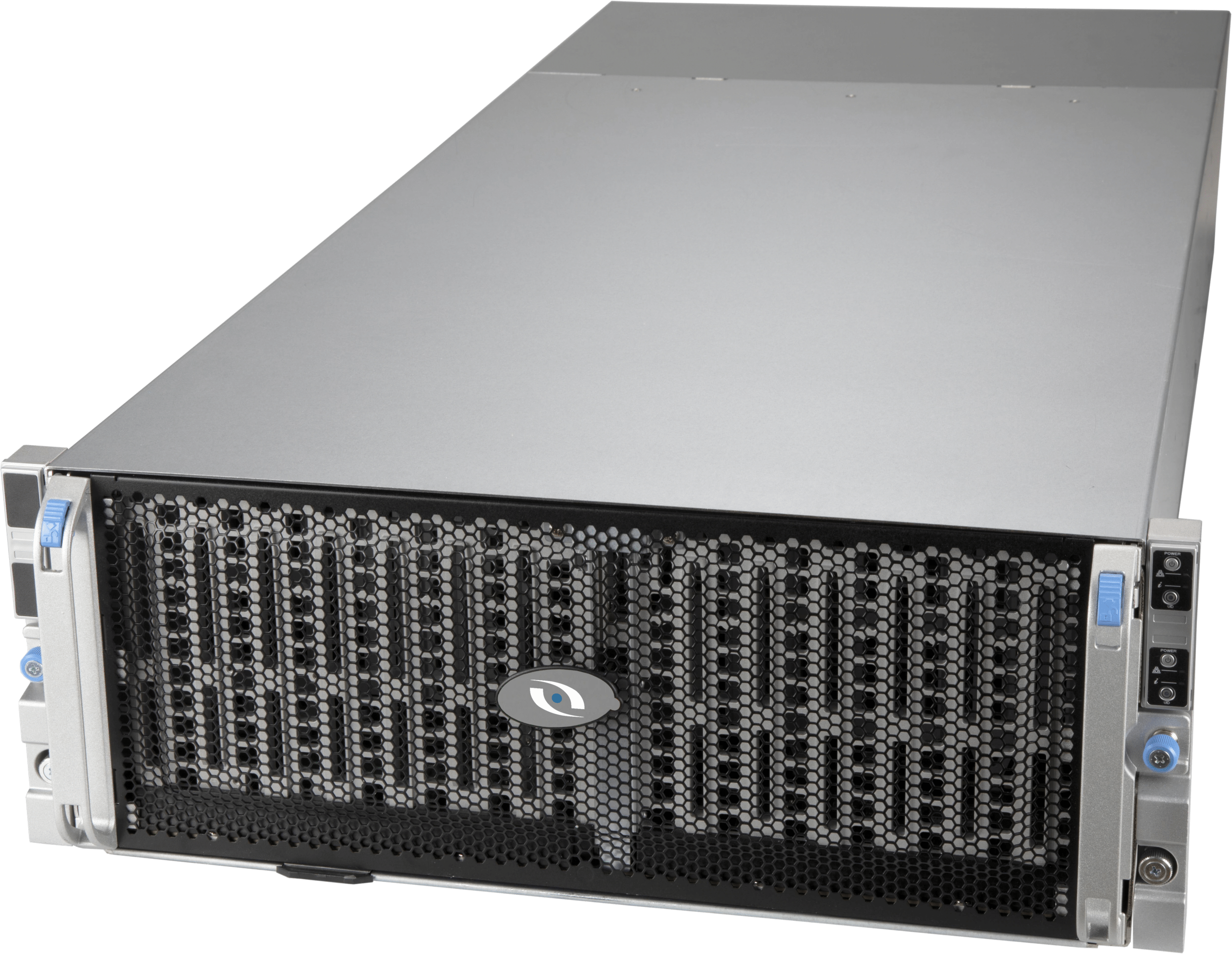

ACE POWERWORKS VAULT-JBOD TL

Model: PV-J4SHE1

The Powerworks Vault-JBOD TL is a high-capacity, top-loading storage solution engineered for enterprise environments that demand scalable, reliable, and cost-effective data retention. With support for up to 90 SAS3 hot-swappable hard drives and housed in a dense 4U chassis, it is purpose-built for archival storage, large-scale media repositories, and disaster recovery systems.

  • Windows/Linux Distributions
  • Up to 90 3.5"/2.5" Top Loading SAS3 12Gb/s Hot-Swappable HDDs
  • 1+1 2000W 80+ Titanium

Massive Capacity for Critical Workloads

Ideal for storing long-term datasets in research, surveillance, broadcast media, and backup systems.

Top-Load 4U Chassis with 90-Bay Support

Accommodates 90x 3.5″/2.5″ SAS3 12Gb/s drives, enabling multi-petabyte configurations in a compact footprint.

Flexible Enterprise Integration

Functions as direct-attached storage or scales into storage area networks (SAN) and hybrid cloud environments.

High-Density Storage for Petabyte-Scale Archival

SAS3 JBOD Built for Enterprise-Grade File Storage

Scalable 90-Bay Server for Backup and Disaster Recovery

Designed with flexibility and ease of maintenance in mind, the Vault-JBOD TL delivers consistent throughput and storage scalability for high-volume data workflows. Its redundant 2000W Titanium power supplies ensure uptime, while the tool-less hot-swap architecture allows for seamless expansion and replacement.

Key Features

  • 90x SAS3 Hot-Swappable Bays

    Support for 3.5"/2.5" 12Gb/s SAS3 HDDs ensures compatibility with modern high-capacity drives.

  • 4U Rackmount Chassis

    Space-efficient, high-density storage design suited for data centers and enterprise racks.

  • 2000W Redundant Titanium PSU

    Dual power supplies (1+1) provide failover protection and improved energy efficiency.

  • JBOD Simplicity, Enterprise Scale

    A straightforward architecture that scales easily as storage needs grow.

SPECIFICATIONS

Form Factor

Micro-Tower

Height: 14.5″ (368.3mm)

Width: 7.5″ (190.5mm)

Depth: 15.5″ (394mm)

Intel Core i5 14600K Processor
– 14 Cores, 20 Threads
– 3.5 GHz up to 5.3 GHz
– 24 MB Cache
RTX A2000 6GB
Intel B760 Chipset

Front I/O:
– 1 x USB 2.0 Port
– 2 x USB 3.0 Ports
– 1 x Type-C Port
– 1 x Headphone Jack
– 1 x Microphone Jack
– 1 x Reset Button
– 1 x Power Button

Rear I/O:
– 2 x Antenna Mounting Points
– 1 x PS/2 Mouse/Keyboard Port
– 2 x DisplayPort
– 1 x USB 3.2 Gen1 Type-C Port
– 3 x USB 3.2 Gen1 Type-A Ports
– 2 x USB 2.0 Ports
– 1 x RJ-45 LAN Port
– HD Audio Jacks: Line in / Front Speaker / Microphone

Connectors:
– 1 x Chassis Intrusion and Speaker Header
– 1 x RGB LED Header
– 3 x Addressable LED Headers
– 1 x CPU Fan Connector (4-pin)
– 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
– 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)
– 1 x 24 pin ATX Power Connector
– 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
– 1 x Front Panel Audio Connector
– 1 x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt 4 AIC Card)
– 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
– 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
– 1 x Front Panel Type C USB 3.2 Gen1 Header
2TB NVMe M.2
32GB DDR5 Memory
500W 80+ Gold
