AsRock® Industrial NUC BOX-358H

MODEL: BOX-358H

Starting At:

Inquire for Pricing

ADD TO QUOTE

AsRock® Industrial NUC BOX-358H

MODEL: BOX-358H

Starting At:

Inquire for Pricing

ADD TO QUOTE
Home / Product / AsRock® Industrial NUC BOX-358H
NUC-BOX-358H-636x636-w
  • Images shown are examples only. Actual system specifications and appearance may vary.

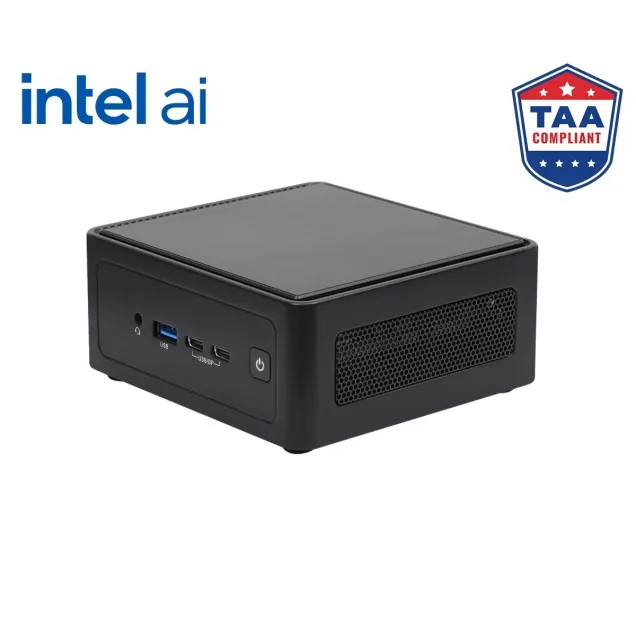

The NUC BOX-358H is a compact fanned mini PC powered by Intel Core Ultra Series 3 processors (Panther Lake-H). Two SO-DIMM slots take dual-channel DDR5 7200/6400MHz memory up to 128GB. Connectivity includes USB4/Thunderbolt 4, four USB 3.2 Gen2 ports, two M.2 Key M slots and an M.2 Key E for a Wi-Fi 7 module, with two Intel 2.5GbE LAN ports. It drives up to four independent displays via two HDMI 2.1 and DisplayPort, and supports Intel VMD RAID 0/1. Housed in a compact 117.5 x 110 x 49mm fanned barebone chassis with a 19V/120W adapter, it is TAA compliant and suits edge AI, machine vision, signage and industrial control.

Ideal Use Cases

  • Agriculture
  • Machining and Manufacturing
  • Heavy Machinery
  • Energy and Utilities
  • Railways and Infrastructure
Specifications
Display
System Specs
  • Intel® Core™ Ultra Series 3 Processors (Panther Lake-H)
  • 2 x 262-pin SO-DIMM DDR5 7200/6400MHz up to 128GB (64GB per DIMM)
  • 1 x USB4/Thunderbolt™4, 5 x USB 3.2 Gen2, 2 x M.2 Key M, 1 x M.2 Key E (Wi-Fi 7 Module)
  • 1 x Intel 2.5 Gigabit LAN
  • Supports Quad display, 2 x HDMI 2.1, 1 x DP 2.1 (from Type-C), 1 x DP 1.4a (from Type-C)
  • Intel® PTT
  • Supports Intel® VMD RAID 0/1
  • 19V/120W Power Adapter
  • 117.5 x 110.0 x 38mm (4.63″ x 4.33″ x 1.50″), Slim Type Fanned Barebone
Processor
Chipset
Graphics
Memory
Storage
OS
Expansion Slots
Networking
Front Bay (Included)
Front Bay (Options)
Supported Processors
Memory Technology
Form Factor
Front I/O
Rear I/O
PSU
Slots
Misc
SKU
What’s Included
Warranty
×
