Force Max Threadripper™

MODEL: FMJ-000000

Starting At:

$32,039.99

Inquire for discount

ADD TO QUOTE

Force Max Threadripper™

MODEL: FMJ-000000

Starting At:

$32,039.99

Inquire for discount

ADD TO QUOTE
Home / Product / Force Max Threadripper™

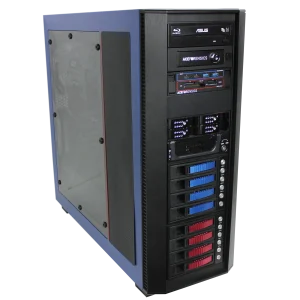

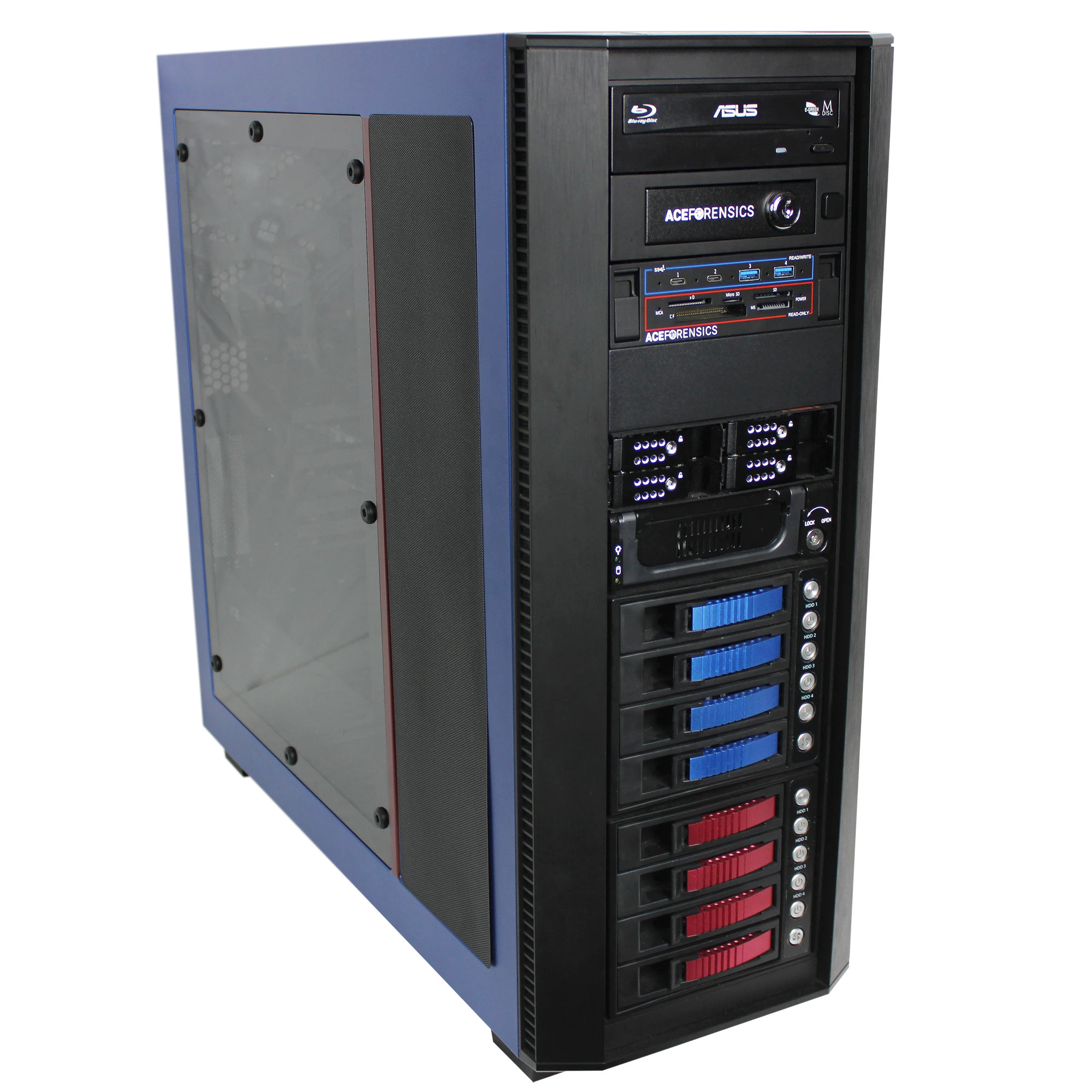

12-Bay Forensic-3Q-B-View-IMG-1031-2000x2000
H: 23.5″ (596.9 mm) x W: 9″ (228.6 mm) x D: 24.5″ (622.3 mm)
  • Images shown are examples only. Actual system specifications and appearance may vary.
The Force Max Threadripper™ is an extreme-performance forensic workstation built for the heaviest investigative workloads and massive parallel processing. Built with a 96‑core Threadripper™ 7995X, and 256GB of DDR5 ECC-Registered memory, the Threadripper Max is engineered to take on multi-terabyte evidence sets and compute intensive analysis. The Force Max Threadripper™ is a perfect fit for those who require maximum stability and sustained high‑density processing.

Ideal Use Cases

  • Parallel forensic processing and massive dataset workloads
  • High-density evidence ingestion with extreme NVMe throughput
  • AI-accelerated media analysis and reconstruction tasks
  • Automation-heavy pipelines requiring large core counts
  • Multi‑terabyte and multi-case operations
Specifications
OS
  • Windows 11 Pro Installed
  • Supports Linux distributions
Display
System Specs
Processor
  • AMD Ryzen Threadripper PRO 7995WX – 96 Cores – 5.1GHz
Chipset
  • AMD WRX90 Chipset
  • Socket: sTR5
Graphics
  • NVIDIA RTX 5070 – 12GB GDDR7
Memory
  • 256GB DDR5 ECC Registered Memory
  • 8 x DDR5 RDIMM Slots
  • Supports up to 1TB DDR5 ECC Registered Memory
Storage
  • 2 x 1TB Enterprise Grade M.2 NVMe SSDs
  • 2 x Open 3.5″ Hard Drive Bays
  • 4 x Open 2.5″ SSD Bays
Expansion Slots
Networking
  • 2 x 10Gb Ethernet LAN
Front Bay (Included)
Front Bay (Options)
  • 1: 10P 5.25 USB3.2 5GB HUB 19P
  • 2: Ace DongleSafe™ for Hub Access Lock Out with Physical Key
  • 3: Logicube WriteProtect-BAY, SAS/SATA/USB3/FW forensic write-blocker
  • 4: Ace Exclusive Extendable Cooling Bay & Integrated USB 3.X Hub and Forensic Card Reader (READ-ONLY)
  • 5: StarUSA BPN-DE110HD Drive Bay Adapter for 5.25″
  • 6: 5.25″ to 4x 2.5″ SATA SAS 6 Gbps HDD SSD Hot-swap Rack
  • 7-9: Trayless 3x 5.25″ to 4x 3.5″ SAS SATA 6 Gbps HDD Hot-swap Rack – Color Front Bezel BLUE
  • 10-12: Trayless 3x 5.25″ to 4x 3.5″ SAS SATA 6 Gbps HDD Hot-swap Rack – Color Front Bezel RED
Supported Processors
Memory Technology
Form Factor
  • Full-Tower
  • H: 23.5″ (596.9 mm) x W: 9″ (228.6 mm) x D: 24.5″ (622.3 mm)
Front I/O
  • 2 x USB 3.X Type-A
  • 1 x USB 3.X Type-C
  • 1 x ESATA Port
  • 1 x Headphone Jack
  • 1 x Microphone Jack
Rear I/O
  • 1 x DisplayPort 1.1a
  • 1 x Optical SPDIF Out Port
  • 2 x USB4 Type-C Ports (40 Gb/s)*
  • 4 x USB 3.2 Gen2 Type-A Ports (10 Gb/s)
  • 2 x USB 3.2 Gen1 Type-A Ports
  • 2 x RJ-45 LAN Ports
  • 1 x RJ45 Dedicated IPMI LAN Port
  • 1 x Line Out Jack (Gold Audio Jack)
  • 1 x Microphone Input Jack (Gold Audio Jack)
PSU
  • 1200W Gold Rated Power Supply
Slots
  • 7 x PCIe 5.0 x16 slots
Misc
  • 1 x Accessory Bag
  • 1 x North American Power Cable
SKU
What’s Included
Warranty
5 Year Standard Parts and Labor
×

Quote List

+ Add Items

Contact Information

This field is for validation purposes and should be left unchanged.
Name(Required)
Ship To Address

Need Help?

Offline
Mon–Fri | 8:00 AM – 5:00 PM CST
Don’t see what you’re looking for? Our experienced techs are here to help! Contact us with your questions, and we’ll design a custom system that fits your requirements.
(877) 223-2667 Contact the Experts
×
