Force Max Xeon®

MODEL: FMX-000000

Starting At:

$23,869.99

ADD TO QUOTE
Home / Product / Force Max Xeon®
H: 23.5″ (596.9 mm) x W: 9″ (228.6 mm) x D: 24.5″ (622.3 mm)

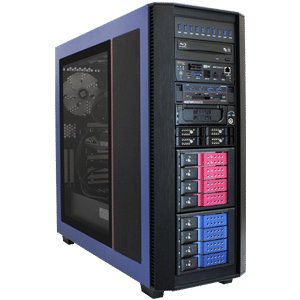

Force Max Xeon®

Model: FMX-000000

SKU: FMX-000000000000000

Starting At:

$23,869.99

Get A Quote!
(877) 223-2667
The Force Max Xeon® is a full-tower forensic workstation engineered for maximum throughput, multitasking, and sustained performance under heavy investigations. Powered by the 24‑core Xeon® W9‑3495X, ECC DDR5 memory, and an 8TB PCIe 5.0 NVMe array, it delivers exceptional stability and compute density for large‑scale evidence processing. With a 5070 Ti GPU and extensive forensic bay support, this full-tower workstation can handle massive datasets and long-duration workflows.

Ideal Use Cases

  • Enterprise-scale forensic processing and massive case workloads
  • Long-duration analysis requiring ECC stability and uptime
  • Parallel ingestion, indexing, and automated forensic pipelines
  • GPU-accelerated AI review and advanced media reconstruction
  • Lab workflows requiring hot-swap and write blocking
Specifications
Display
System Specs
  • OS:
    • Windows 11 Pro Installed
  • CPU:
    • Xeon® W9-3495X
    • 24 cores / 48 threads
    • Clock speed 4.6 GHz
  • RAM:
    • 128 GB DDR5 5600MT/s ECC
  • Storage:
    • 4 × 2TB M.2 NVMe
  • GPU:
    • GeForce RTX 5070 Ti
    • 16 GB GDDR7 VRAM
  • Motherboard:
    • Intel® W790 Chipset
Processor
Chipset
Graphics
Memory
Storage
OS
Expansion Slots
Networking
Front Bay (Included)
Front Bay (Options)
  • 1: 10P 5.25 USB3.2 5GB HUB 19P
  • 2: Ace DongleSafe™ for Hub Access Lock Out with Physical Key
  • 3: Logicube WriteProtect-BAY, SAS/SATA/USB3/FW forensic write-blocker
  • 4: Ace Exclusive Extendable Cooling Bay & Integrated USB 3.X Hub and Forensic Card
  • 5: Industrial 5.25″ to 3.5″ 2.5″ 12Gb/s HDD SSD Hotswap Rack
  • 6: 5.25″ to 4x 2.5″ SATA SAS 6 Gbps HDD SSD Hot-swap Rack
  • 7-9: Trayless 3x 5.25″ to 4x 3.5″ SAS SATA 6 Gbps HDD Hot-swap Rack – Color Front Bezel BLUE
  • 10-12: Trayless 3x 5.25″ to 4x 3.5″ SAS SATA 6 Gbps HDD Hot-swap Rack – Color Front Bezel RED
Supported Processors
  • Intel® Socket LGA4677 for Xeon® W-3400 and W-2400
  • Intel® W790 Chipset
Memory Technology
  • Up to 2048 GB EEC Registered DDR5
  • 8 x DIMM Slots
Form Factor
  • Full-Tower
  • H: 23.5″ (596.9 mm) x W: 9″ (228.6 mm) x D: 24.5″ (622.3 mm)
Front I/O
  • 2 x USB 3.X Type-A
  • 1 x USB 3.X Type-C
  • 1 x ESATA Port
  • 1 x Headphone Jack
  • 1 x Microphone Jack
Rear I/O
  • 1 x USB 3.2 Gen 2×2 port(s) (1 x USB Type-C)
  • 5 x USB 3.2 Gen 2 port(s) (4 x Type-A + 1 x USB Type-C®)
  • 2 x USB 2.0 port(s) (2 x Type-A)
  • 1 x VGA port
  • 2 x Intel® dual 10Gb Ethernet ports
  • 1 x Realtek 1Gb Ethernet port
  • 5 x Audio jacks
  • 1 x Optical S/PDIF out port
  • 1 x BIOS FlashBack™ button
  • 1 x Clear CMOS button
PSU
  • 1000W Gold Rated Power Supply
Slots
  • 7 x PCIe 5.0 slots
Misc
  • 1 x Accessory Bag
  • 1 x North American Power Cable
SKU
Warranty
Spec Sheet
Download Spec Sheet
×
