Force X Ultra Forensic Workstation

MODEL: FXC-000000

Starting At:

$16,049.99

Inquire for discount

ADD TO QUOTE

Force X Ultra Forensic Workstation

MODEL: FXC-000000

Starting At:

$16,049.99

Inquire for discount

ADD TO QUOTE
Home / Product / Force X Ultra Forensic Workstation
H: 19.75″ (501.7 mm) x W: 8.25″ (209.6 mm) x D: 18.875″ (479.4 mm)

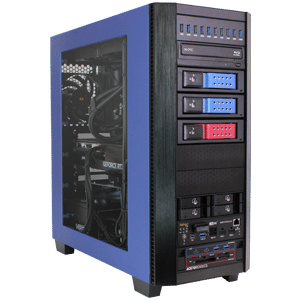

  • Images shown are examples only. Actual system specifications and appearance may vary.
The Force X Ultra™ is an advanced high-performance digital forensics workstation designed for analysis, rapid evidence processing, and GPU-accelerated investigative workflows. The Force X Ultra™ features a Core Ultra 9 285K processor, 128 GB of DDR5, and 8 TB of high-speed storage, so it is built for massive datasets and complex case workloads. This workstation’s forensic bays, write‑blocking options, and high‑speed I/O to support modern investigative demands.

Ideal Use Cases

  • Lab based forensic analysis
  • Large evidence processing and indexing
  • GPU-accelerated review, AI-assisted triage, and pattern analysis
  • Multi-drive acquisition workflows requiring rapid NVMe throughput
  • Large case datasets, long-duration tasks, and complex workloads
Specifications
Display
System Specs
Processor
  • Intel Core Ultra 9 285K – 24 Cores – 3.7GHz
Chipset
  • Intel Z890 Chipset
  • Socket: LGA1851
Graphics
  • NVIDIA RTX 5070 Ti – 16GB GDDR7
Memory
  • 128GB DDR5 Memory
  • 4 x DDR5 DIMM Slots
  • Supports up to 256GB DDR5 Memory
Storage
  • 4 x 2TB M.2 NVMe SSD
  • 4 x SATA 6Gb/s ports
OS
  • Windows 11 Pro Installed
  • Supports Linux distributions
Expansion Slots
Networking
  • 1 x 10Gb Ethernet LAN
  • 1 x 2.5Gb Ethernet LAN
  • Wi-Fi 7 + Bluetooth 5.4
Front Bay (Included)
Front Bay (Options)
  • 1: Ace DongleSafe™ for Hub Access Lock Out with Physical Key
  • 2: Configurable
  • 3: 1 x Industrial 5.25″ to 3.5″ 2.5″ 12Gb/s HDD SSD Hotswap Rack
  • 4: 1 x Industrial 5.25″ to 3.5″ 2.5″ 12Gb/s HDD SSD Hotswap Rack,
  • 5-7: 120mm ARGB 2150RPM*total fans dependent on front bay configuration*
  • 8: Logicube WriteProtect-BAY, SAS/SATA/USB3/FW forensic write-blocker
  • 9: Ace Exclusive Extendable Cooling Bay & Integrated USB 3.X Hub and Forensic Card Reader (READ-ONLY)
  • 10: Configurable
Supported Processors
  • Support Intel® Core™ Ultra Processors (Series 2), LGA1851
  • Intel® Z890 Chipset
Memory Technology
  • Up to 256 GB DDR5
  • 4 x DIMM slots
Form Factor
  • Mid-Tower
  • H: 19.75″ (501.7 mm) x W: 8.25″ (209.6 mm) x D: 18.875″ (479.4 mm)
Front I/O
  • 1 x USB 3.1 Type-C
  • 1 x ESATA Port
  • 2 x USB 3.0 Type-A
  • 1 x Headphone Jack
  • 1 x Microphone Jack
Rear I/O
  • 2 x Thunderbolt™ 5 USB Type-C® ports
  • 1 x USB4 / Thunderbolt™ Type-C®port
  • 6 x USB 10Gbps ports (6 x Type-A)
  • 1 x USB 2.0 port (1 x Type-A)
  • 1 x DisplayPort (Input only)
  • 1 x HDMI™ port
  • 1 x Wi-Fi module1 x Marvell® AQtion 10Gb Ethernet port
  • 1 x Intel® 2.5Gb Ethernet port
  • 2 x Gold-plated audio jacks
  • 1 x BIOS FlashBack™ button
PSU
  • 1200W Gold Rated Power Supply
Slots
  • 2 x PCIe 5.0 x16 slots
  • 1 x PCIe 4.0 x16 slot
Misc
  • 1 x Accessory Bag
  • 1 x North American Power Cable
SKU
Warranty
×
