AsRock® Industrial iBOX-358H

MODEL: iBOX-358H

Starting At:

Inquire for Pricing

ADD TO QUOTE

AsRock® Industrial iBOX-358H

MODEL: iBOX-358H

Starting At:

Inquire for Pricing

ADD TO QUOTE
Home / Product / AsRock® Industrial iBOX-358H

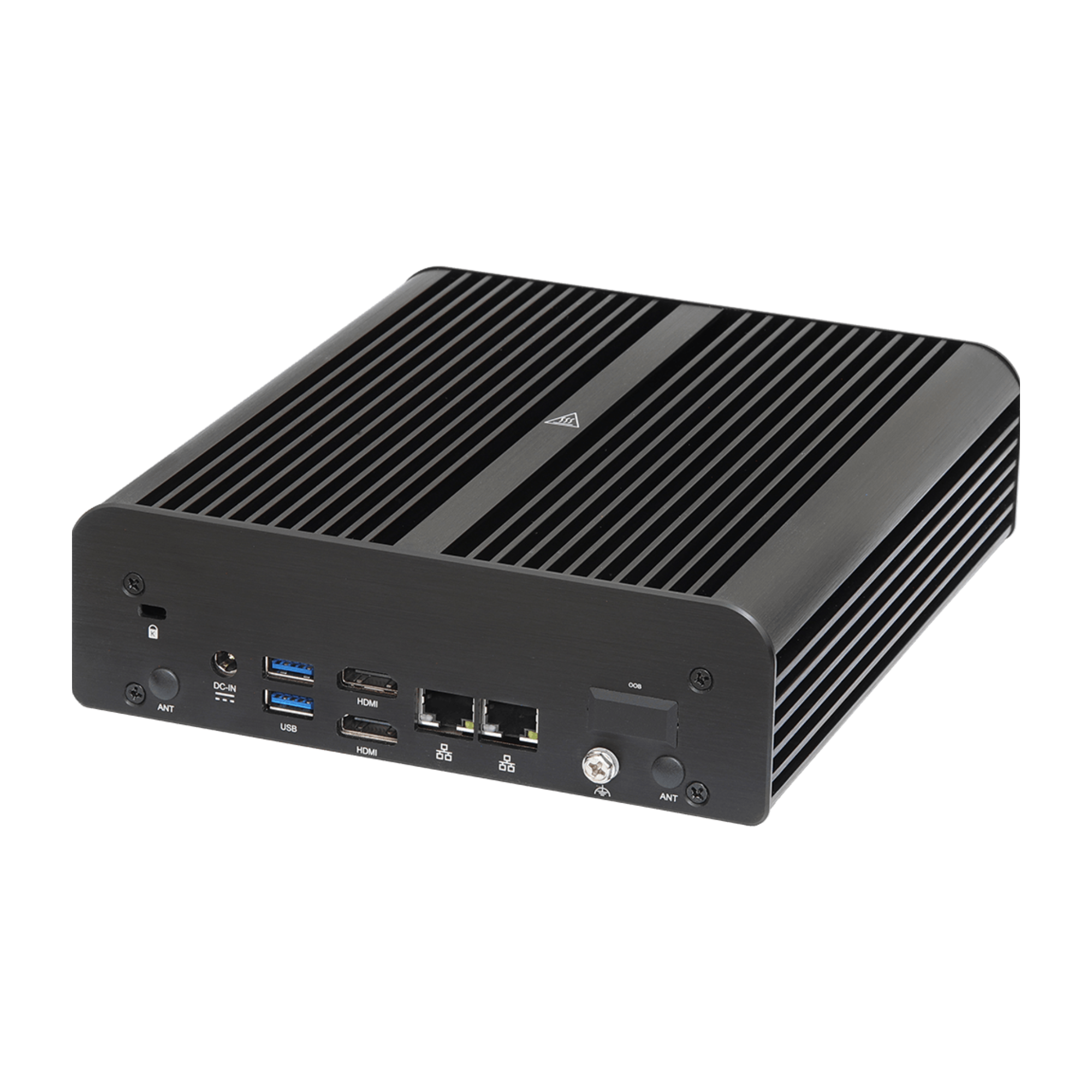

2000x2000 iBOX-358H
  • Images shown are examples only. Actual system specifications and appearance may vary.
The iBOX-358H is a high-performance fanless embedded box PC powered by Intel Core Ultra Series 3 processors (Panther Lake-H). Two SO-DIMM slots take dual-channel DDR5 7200/6400MHz memory up to 128GB with In-Band ECC for data integrity. Connectivity includes USB4/Thunderbolt 4, four USB 3.2 Gen2 and two USB 2.0 ports, two M.2 Key M slots and an M.2 Key E, with two Intel 2.5GbE LAN ports. It drives up to four independent displays via two HDMI 2.1 and DisplayPort outputs, and supports Intel vPro remote management and VMD RAID 0/1. Housed in a compact 200 x 176.6 x 53.6mm fanless chassis with a 19V adapter and optional out-of-band management, it is TAA compliant and suited to machine vision, edge AI, digital signage and industrial control.

Ideal Use Cases

  • Agriculture
  • Machining and Manufacturing
  • Heavy Machinery
  • Energy and Utilities
  • Railways and Infrastructure
Specifications
Display
System Specs
  • Intel® Core™ Ultra Series 3 Processors (Panther Lake-H)
  • 2 x 262-pin SO-DIMM DDR5 7200/6400MHz up to 128GB (64GB per DIMM), supports In-Band ECC
  • 1 x USB4/Thunderbolt™4, 4 x USB3.2 Gen2, 2 x USB 2.0, 2 x M.2 Key M, 1 x M.2 Key E, 1 x COM
  • 2 x Intel 2.5 Gigabit LAN
  • Supports Quad display, 2 x HDMI 2.1, 1 x DP 2.1 (from USB4), 1 x DP 1.4a (from Type-C)
  • Intel® PTT
  • Supports Intel® vPro, VMD RAID 0/1
  • 19V/120W Power Adapter
  • OOB Function ( BOM Optional)
  • 200 x 176.6 x 53.6mm (7.87″ x 6.95″ x 2.11″), Fanless Embedded BOX PC
Processor
Chipset
Graphics
Memory
Storage
OS
Expansion Slots
Networking
Front Bay (Included)
Front Bay (Options)
Supported Processors
Memory Technology
Form Factor
Front I/O
Rear I/O
PSU
Slots
Misc
SKU
Warranty
×
