Neuron AI Workstation

MODEL: LC-F3XS2

Starting At:

$13,943.74

ADD TO QUOTE

Neuron AI Workstation

MODEL: LC-F3XS2

Starting At:

$13,943.74

ADD TO QUOTE
Home / Product / Neuron AI Workstation

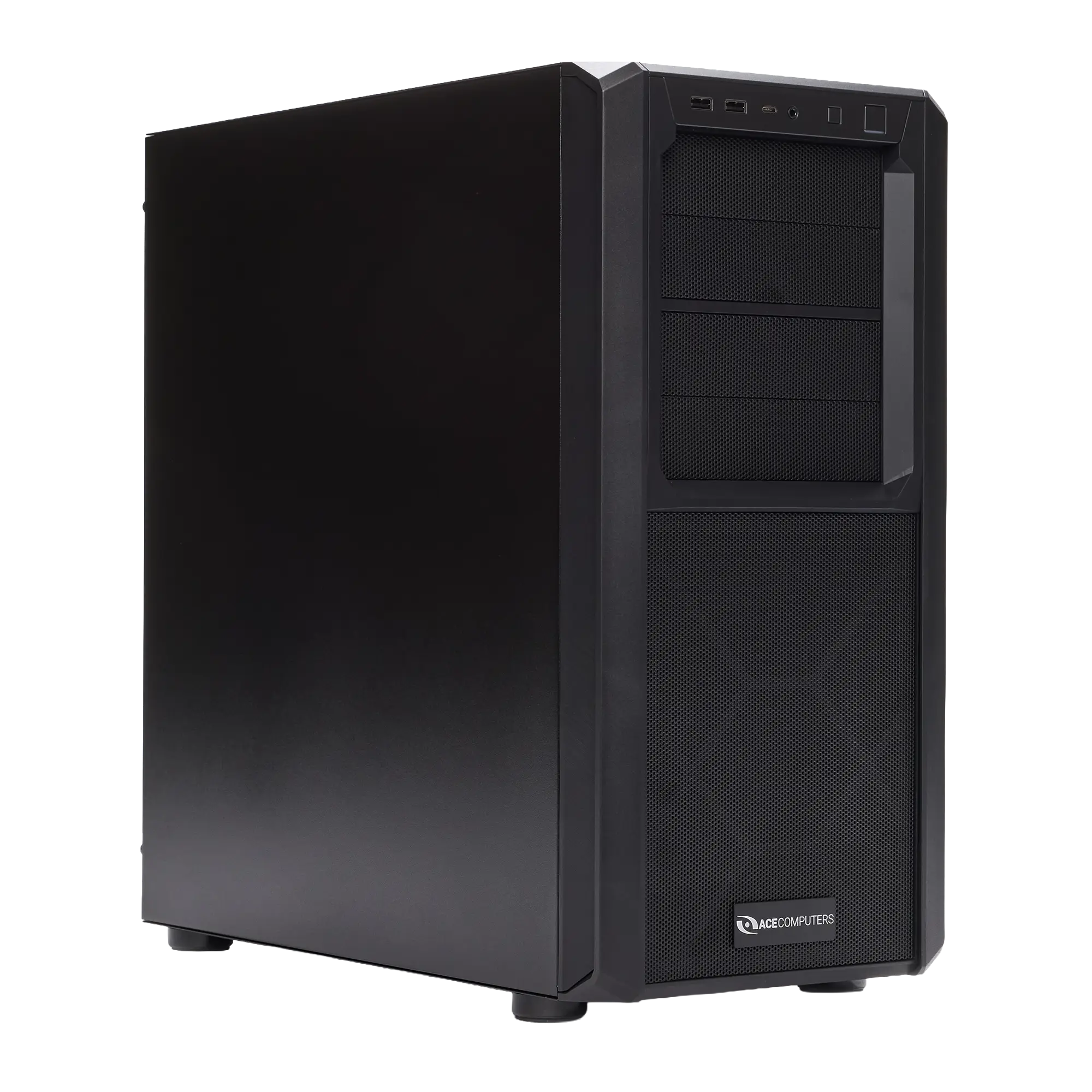

ace logicad neuron z workstation 3q

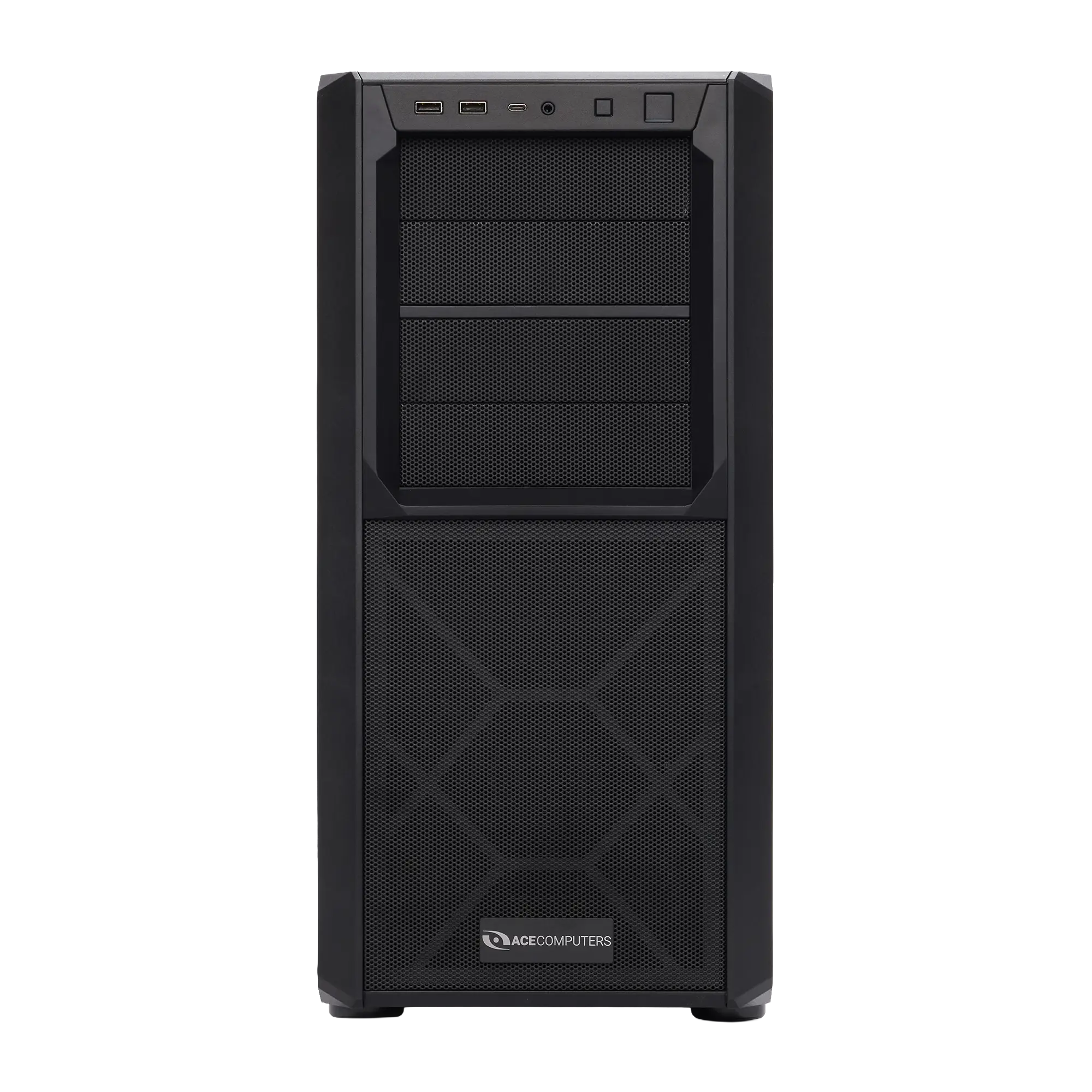

ace logicad neuron z workstation front

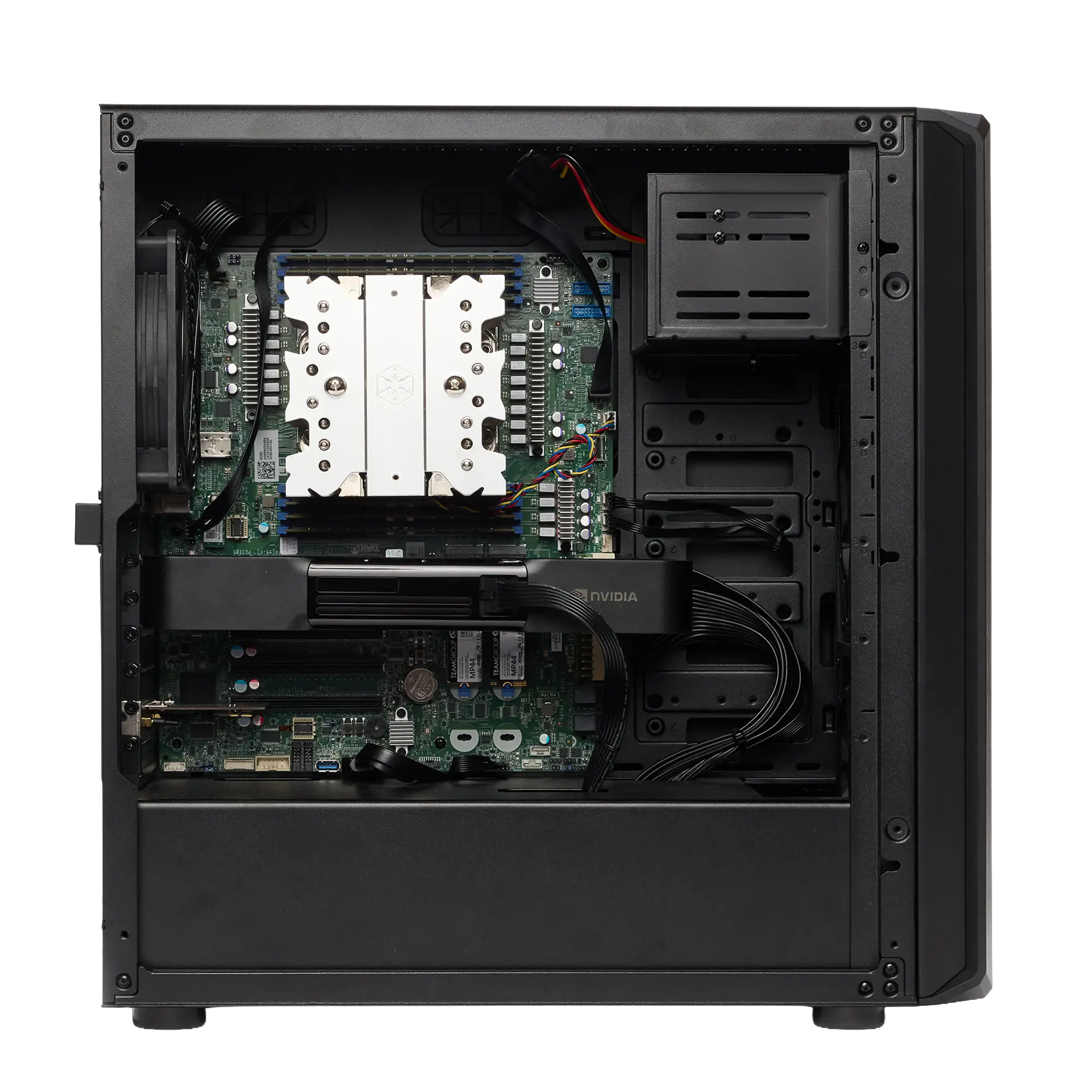

ace logicad neuron z workstation side

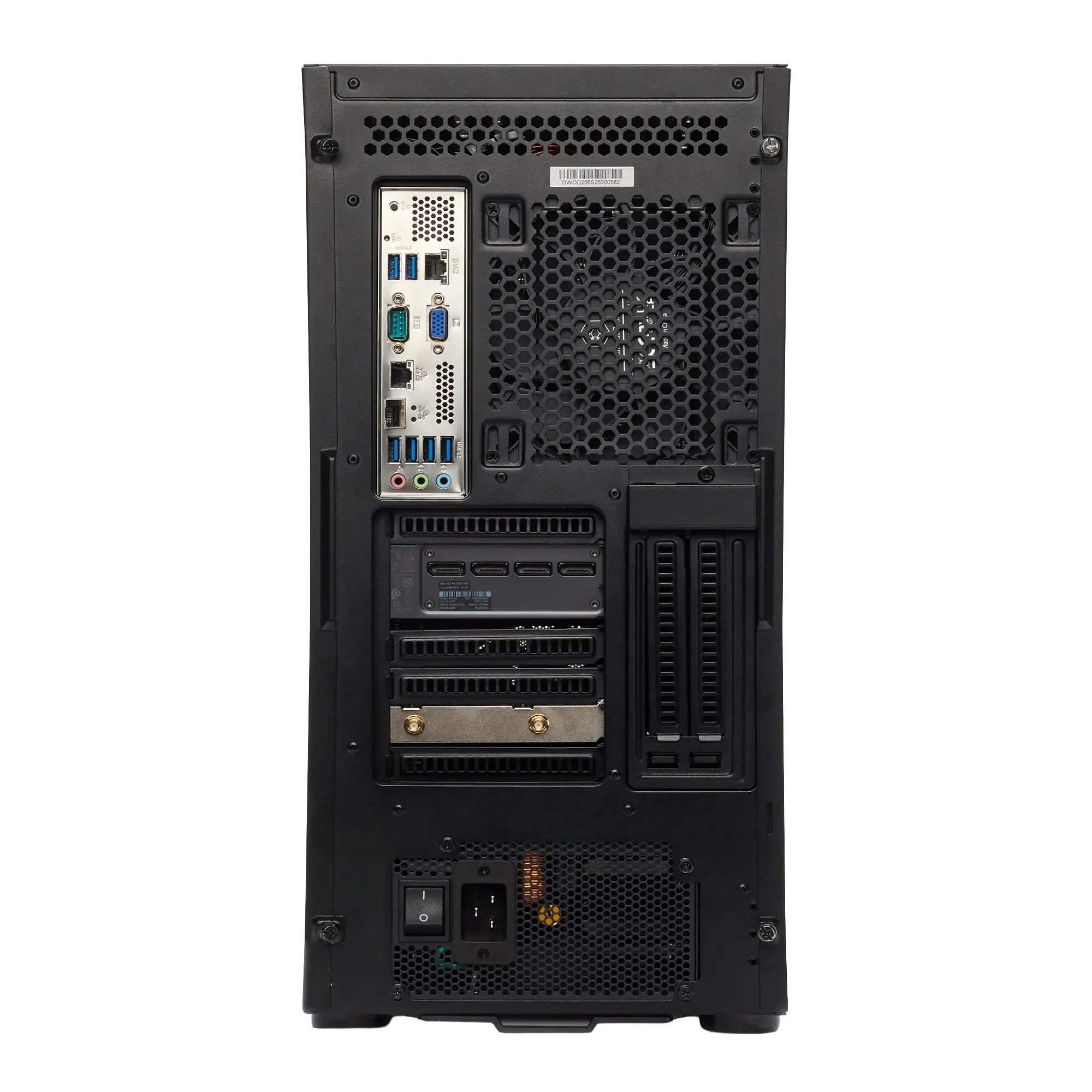

ace logicad neuron z workstation rear
L: 19.4″ (492.7mm) x W: 9.13″ (232mm) x H: 19.44″ (493.9mm)
  • Images shown are examples only. Actual system specifications and appearance may vary.
The Ace Neuron AI Workstation is a mid‑tower workstation engineered for reliability, stability, and sustained performance in professional and technical environments. It features an AMD EPYC 9115 processor, 128GB of DDR5 ECC memory, a 1TB M.2 NVMe SSD, and an NVIDIA RTX Pro 2000 Blackwell to support compute‑intensive workloads, professional visualization, and error‑corrected memory operations. Its workstation‑grade architecture is built for long‑duration tasks, data‑integrity‑critical workflows, and demanding enterprise applications. Every LogiCAD system includes a standard 3‑year warranty.

Ideal Use Cases

  • Technical visualization workflows
  • Compute-focused office operations
  • Precision Modeling
  • Software Development
  • AI Inference
amd epyc 9115 ai workstation
nvidia rtx pro 2000 workstation
128gb ddr5 ecc ram workstation
linux workstation for ai
ai workstation for cad software development visualization workflows 3d modeling inference
Specifications
Display
System Specs
Processor
  • AMD EPYC™ 9115 (16 Cores / 32 Threads)
Chipset
  • Ace Proprietary Motherboard
  • Supports AMD EPYC™ 9004/9005 Series Processors (TDP up to 400W)
Graphics
  • NVIDIA® RTX™ PRO 2000 Blackwell – 16GB GDDR7 ECC Memory
  • Supports up to 3 x NVIDIA RTX Pro 6000s
Memory
  • 128GB DDR5 ECC-Registered Memory
  • 8 x DDR5 RDIMM Slots
Storage
  • 1TB Enterprise M.2 NVMe PCIe 4.0 SSD
OS
  • Supports:
    • Linux
    • Windows
Expansion Slots
Networking
Front Bay (Included)
  • 4 x 5.25″ Empty Bays
Front Bay (Options)
Supported Processors
Memory Technology
Form Factor
  • Mid-Tower
  • L: 19.4″ (492.7mm) x W: 9.13″ (232mm) x H: 19.44″ (493.9mm)
Front I/O
  • 2 x USB 3.0
  • 1 x USB Type-C
  • 1 x Combo Audio
Rear I/O
  • 6 x USB3.2 Gen 1 Type-A
  • 1 x D-sub-VGA + COM
  • 1 x 1GbE RJ-45 Port
  • 1 x 1GbE Fiber Port
  • 1 x Audio Jack
PSU
  • 1200W Platinum Rated Power Supply
Slots
  • 2 x M.2 2280/22110 PCIe 5.0 x4 Slots
  • 5 x PCIe 5.0 x16 Slots
Misc
  • 1 x Accessory Bag
  • 1 x North American Power Cable
  • 1 x Standard 104-key USB wired keyboard and mouse
SKU
Warranty
×
