GigaIPC™ QBiX-EHLA6412-A1

MODEL: QBiX-EHLA6412-A1

Starting At:

Inquire for Pricing

ADD TO QUOTE

GigaIPC™ QBiX-EHLA6412-A1

MODEL: QBiX-EHLA6412-A1

Starting At:

Inquire for Pricing

ADD TO QUOTE
Home / Product / GigaIPC™ QBiX-EHLA6412-A1

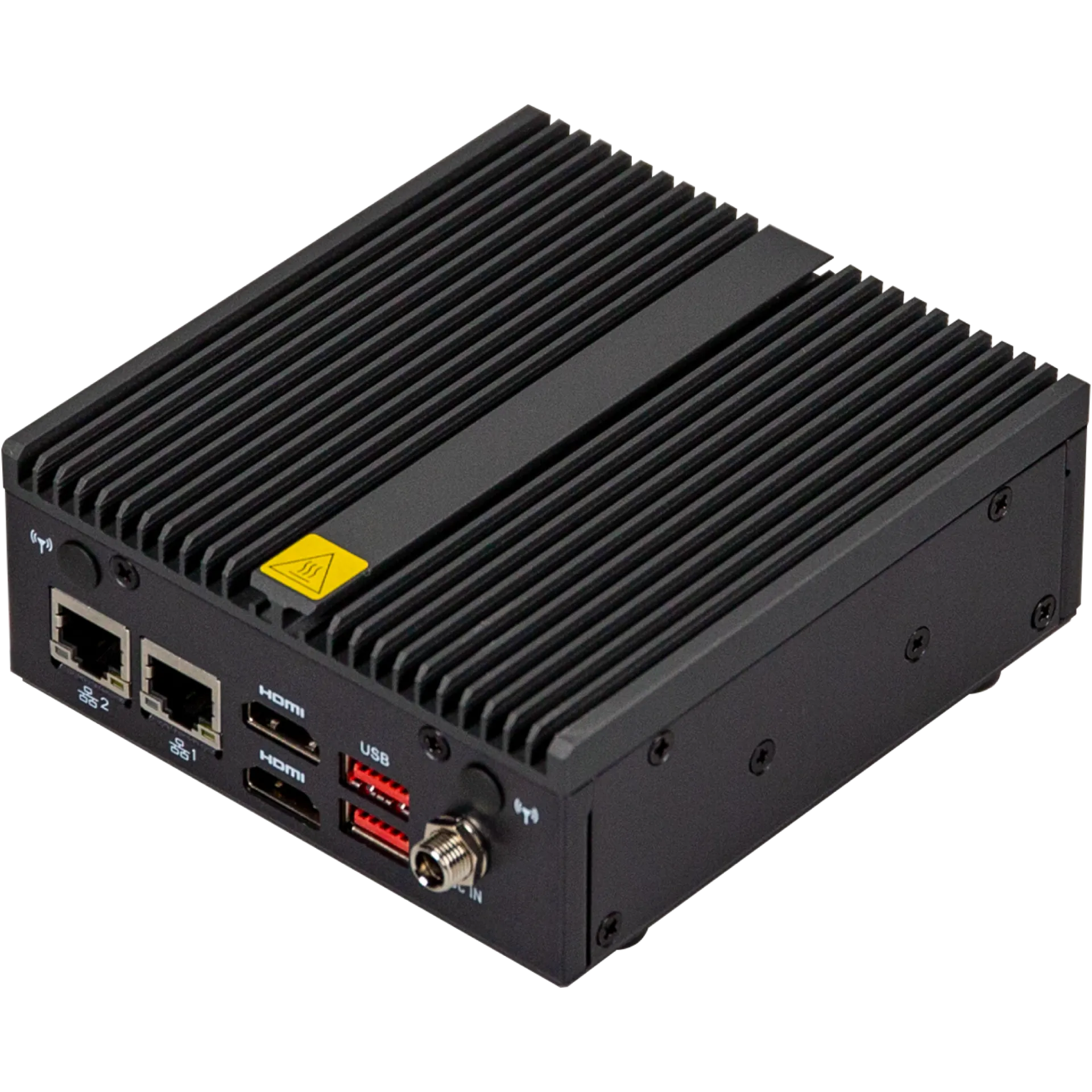

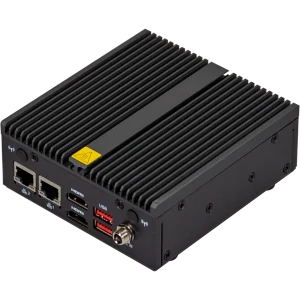

QBiX-ADNAN97-A1-3D-Left-Rear-IO-2000px__24G02Qp22X
  • Images shown are examples only. Actual system specifications and appearance may vary.
The QBiX-EHLA6412-A1 is a compact fanless embedded system built around the low-power Intel Celeron J6412, a four-core Elkhart Lake processor with a 10W TDP reaching up to 2.60 GHz. Its 118 x 109.4 x 44.4 mm chassis suits space-constrained industrial deployments. Connectivity includes two HDMI 2.0 outputs for dual independent displays, two Intel I210AT GbE LAN ports, USB 3.2 ports and an RS-232 COM port. Single channel DDR4 memory up to 32 GB, M.2 storage and WiFi expansion complete the system.

Ideal Use Cases

  • Agriculture
  • Machining and Manufacturing
  • Heavy Machinery
  • Energy and Utilities
  • Railways and Infrastructure
Specifications
Display
System Specs
  • System Size : 118W x 109.4D x 44.4H (mm)
  • Intel® Celeron® J6412 Processor
  • 1 x COM Port (RS-232)
  • Single Channel DDR4, 1 x SO-DIMM
  • 2 x HDMI for Dual display
  • 2 x GbE LAN Ports
Processor
Chipset
Graphics
Memory
Storage
OS
Expansion Slots
Networking
Front Bay (Included)
Front Bay (Options)
Supported Processors
Memory Technology
Form Factor
Front I/O
Rear I/O
PSU
Slots
Misc
SKU
Warranty
×
