Mini AMD AI Desktop

MODEL: VMS-DMR30M

Starting At:

$5,699.99

Inquire for discount

ADD TO QUOTE

Mini AMD AI Desktop

MODEL: VMS-DMR30M

Starting At:

$5,699.99

Inquire for discount

ADD TO QUOTE
Home / Product / Mini AMD AI Desktop

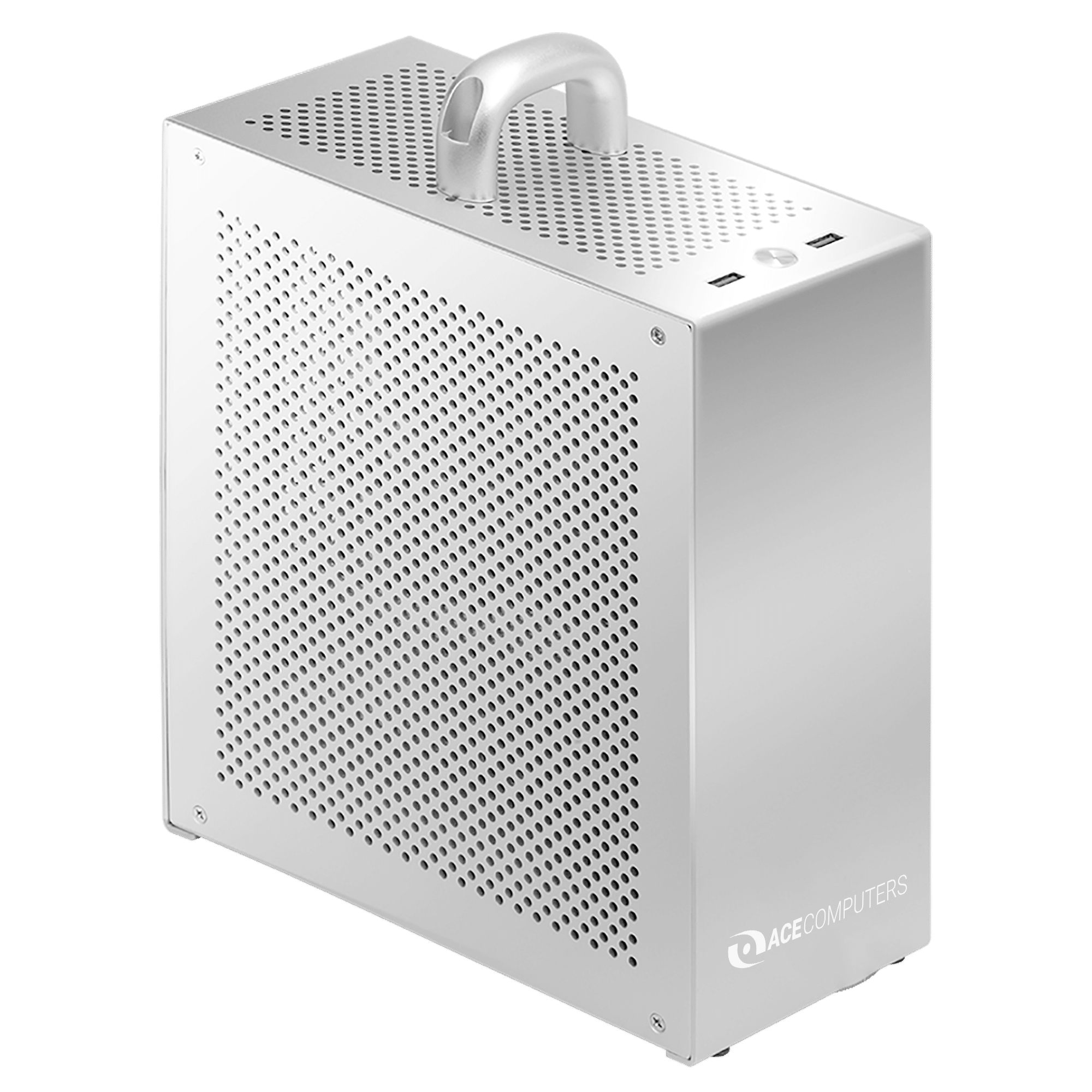

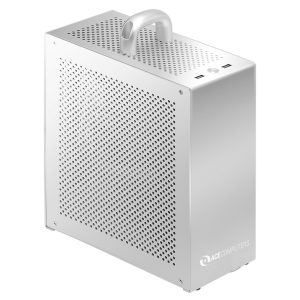

A silver Mini AMD AI Desktop computer case with perforated side panels, a carrying handle on top, and the ACE COMPUTERS logo in the bottom right corner.

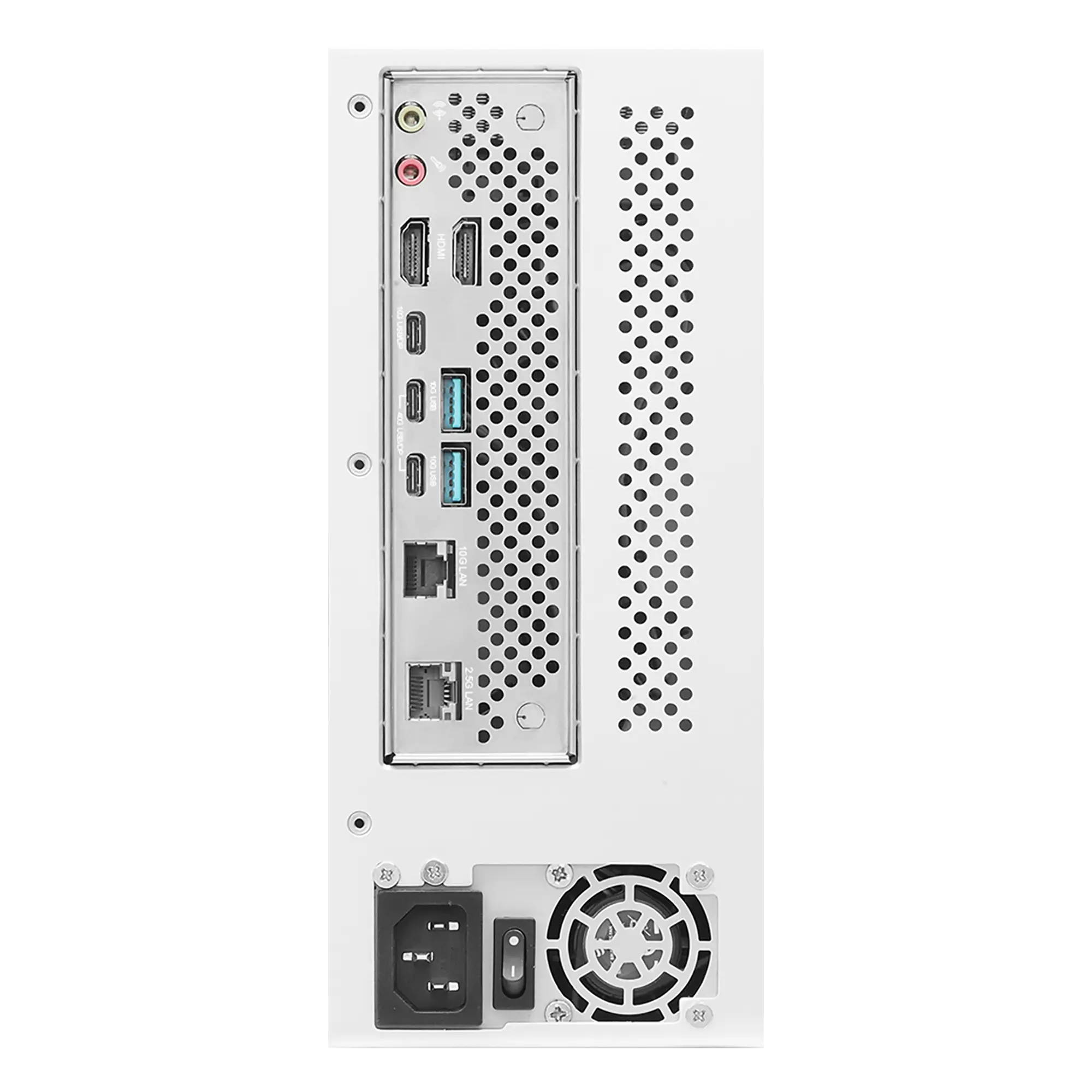

Rear view of a Mini AMD Desktop case showing various ports, including HDMI, USB, Ethernet, audio jacks, a power connector, and a cooling fan—perfect for an efficient AI Desktop setup.
L: 7.87″ (200 mm) x W: 3.94″ (100 mm) x H: 9.13″ (232 mm)
  • Images shown are examples only. Actual system specifications and appearance may vary.
The Mini AMD AI Desktop is a compact, high‑performance edge AI system designed for demanding industrial and commercial applications. Powered the AMD Ryzen™ AI Max AI Max+ 395 processor, it delivers strong CPU, GPU, and integrated AI

Ideal Use Cases

  • AI Development
  • Edge AI / Machine Vision
  • Smart Factory / Industrial Automation
  • AI Inference
  • ISV Development
Specifications
Display
System Specs
Processor
  • AMD Ryzen™ AI Max+395 – 16C – Boost up to 5.1GHz
  • Supports AMD Ryzen™ AI Max 300 Series
Chipset
Graphics
  • AMD Radeon™ 8060S Graphics
Memory
  • 128GB LPDDR5X Memory
  • Supports up to 128GB LPDDR5X – 8000 MT/s
Storage
  • 2TB M.2 PCIe 4.0 NVMe SSD
  • 1 x Open M.2 (Key M, 2242/2280) with PCIe Gen4 x4 for SSD
  • Supports Raid 0/1
OS
  • Supported OS:
    • Windows 11
    • Linux OS
Expansion Slots
Networking
  • 1 x 10Gb RJ-45 Ethernet
  • 1 x 2.5Gb RJ-45 Ethernet
  • 1 x M.2 (Key E) – supports Wi-Fi 7 802.11be+ BT 5.4
Front Bay (Included)
Front Bay (Options)
Supported Processors
Memory Technology
Form Factor
  • Mini Desktop
  • L: 7.87″ (200 mm) x W: 3.94″ (100 mm) x H: 9.13″ (232 mm)
Front I/O
  •  2 x USB 2.0
Rear I/O
  • 2 x HDMI 2.1
  • 1 x 10Gb Ethernet
  • 1 x 2.5Gb Ethernet
  • 2 x USB4 (5V/3A, supports DP 2.1 output)
  • 1 x USB 3.2 Gen2 (Type C ,5V/3A, supports DP 2.1 output)
  • 2 x USB 3.2 Gen2
  • 2 x Mic-In/Line-Out
PSU
  • 400W Power Supply (100-240V)
Slots
  • 1 x M.2 (Key M, 2242/2280) with PCIe Gen4 x4 for SSD
  • 1 x M.2 (Key M, 2280) with PCIe Gen4 x4 for SSD
  • 1 x M.2 (Key E) – supports Wi-Fi 7 802.11be+ BT 5.4
Misc
SKU
What’s Included
Warranty
×
