Vision Performance Micro Desktop

MODEL: VS-77RB8A

Starting At:

$3,093.65

Inquire for discount

ADD TO QUOTE

Vision Performance Micro Desktop

MODEL: VS-77RB8A

Starting At:

$3,093.65

Inquire for discount

ADD TO QUOTE
Home / Product / Vision Performance Micro Desktop

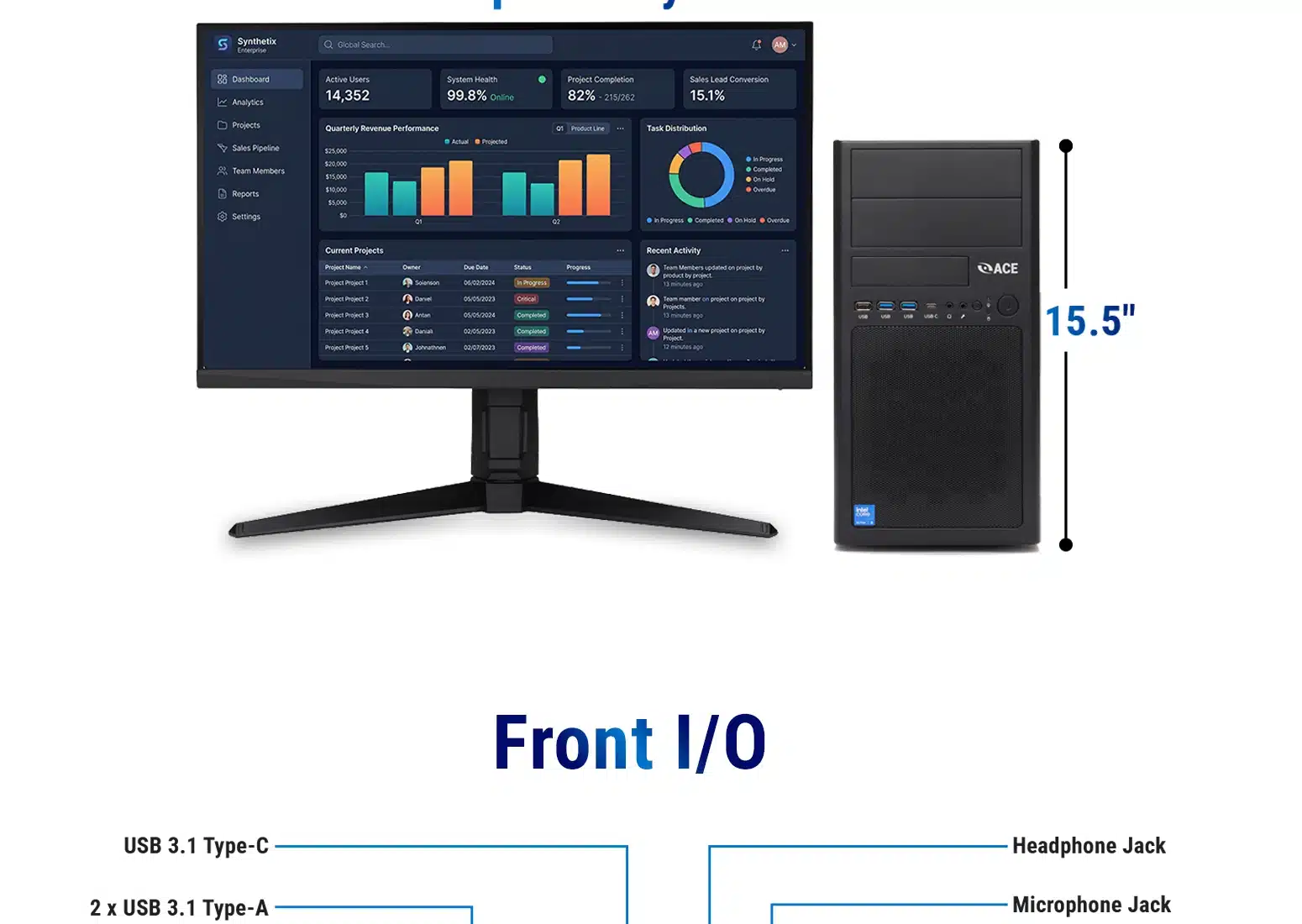

L: 14.5″ (368.3 mm) x W: 7.5″ (190.5 mm) x H: 15.5″ (393.7 mm)
  • Images shown are examples only. Actual system specifications and appearance may vary.

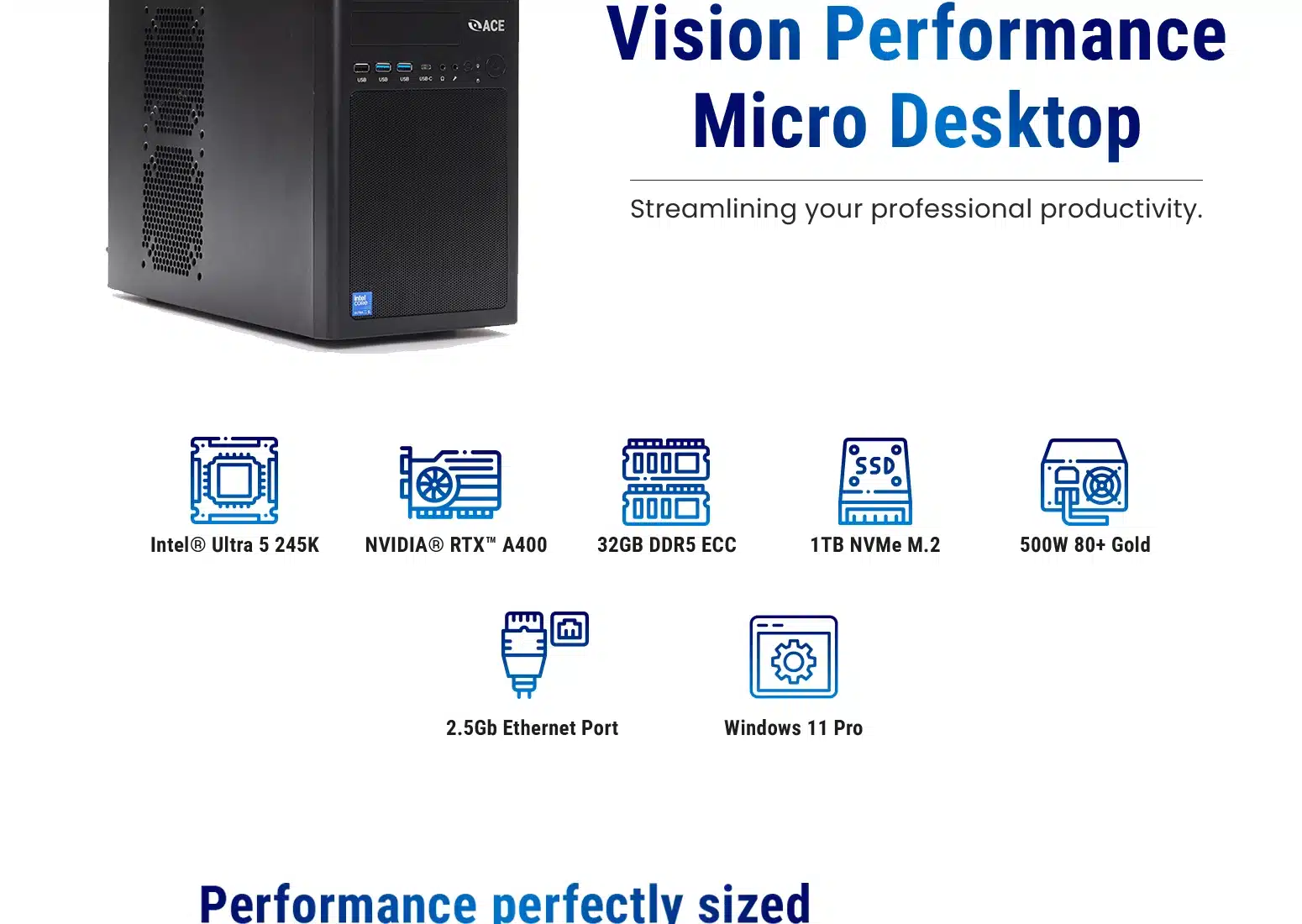

The Ace Vision Performance Micro Desktop is designed for dependable business and enterprise performance. It features an Intel® Core™ Ultra 5 250K processor, 32GB of DDR5 memory, a 1TB M.2 NVMe SSD, and NVIDIA® RTX™A400 professional graphics for accelerated visualization and GPU‑enabled workloads. Windows 11 Pro provides secure, modern application compatibility for organizational environments. Every Vision system includes a standard 3‑year warranty.

Ideal Use Cases

  • GPU-enabled workloads
  • Light AI/ML workloads
  • 2D/3D design tasks
  • Office + productivity suites
  • Secure enterprise deployments
Specifications
Display
System Specs
Processor
  • Intel® Core™ Ultra 5 250K
  • Supports Intel® Core™ Ultra Processors (Series 2)
Chipset
  • Intel® B860 Chipset
  • Socket: LGA1851
Graphics
  • NVIDIA® RTX™ A400 – 4GB GDDR6
Memory
  • 32GB DDR5 Memory
  • 4 x DDR5 DIMM Slots
  • Supports up to 256GB DDR5 Memory
Storage
  • 1TB M.2 NVMe SSD
  • 4 x SATA3 6.0 Gb/s Connectors
OS
  • Windows 11 Pro Installed
  • Supports various Linux distributions
Expansion Slots
Networking
  • 2.5Gb Ethernet
  • 1 x M.2 Slot (Key E), supports type 2230 WiFi/BT PCIe WiFi module
Front Bay (Included)
Front Bay (Options)
Supported Processors
Memory Technology
Form Factor
  • Micro Desktop
  • L: 14.5″ (368.3 mm) x W: 7.5″ (190.5 mm) x H: 15.5″ (393.7 mm)

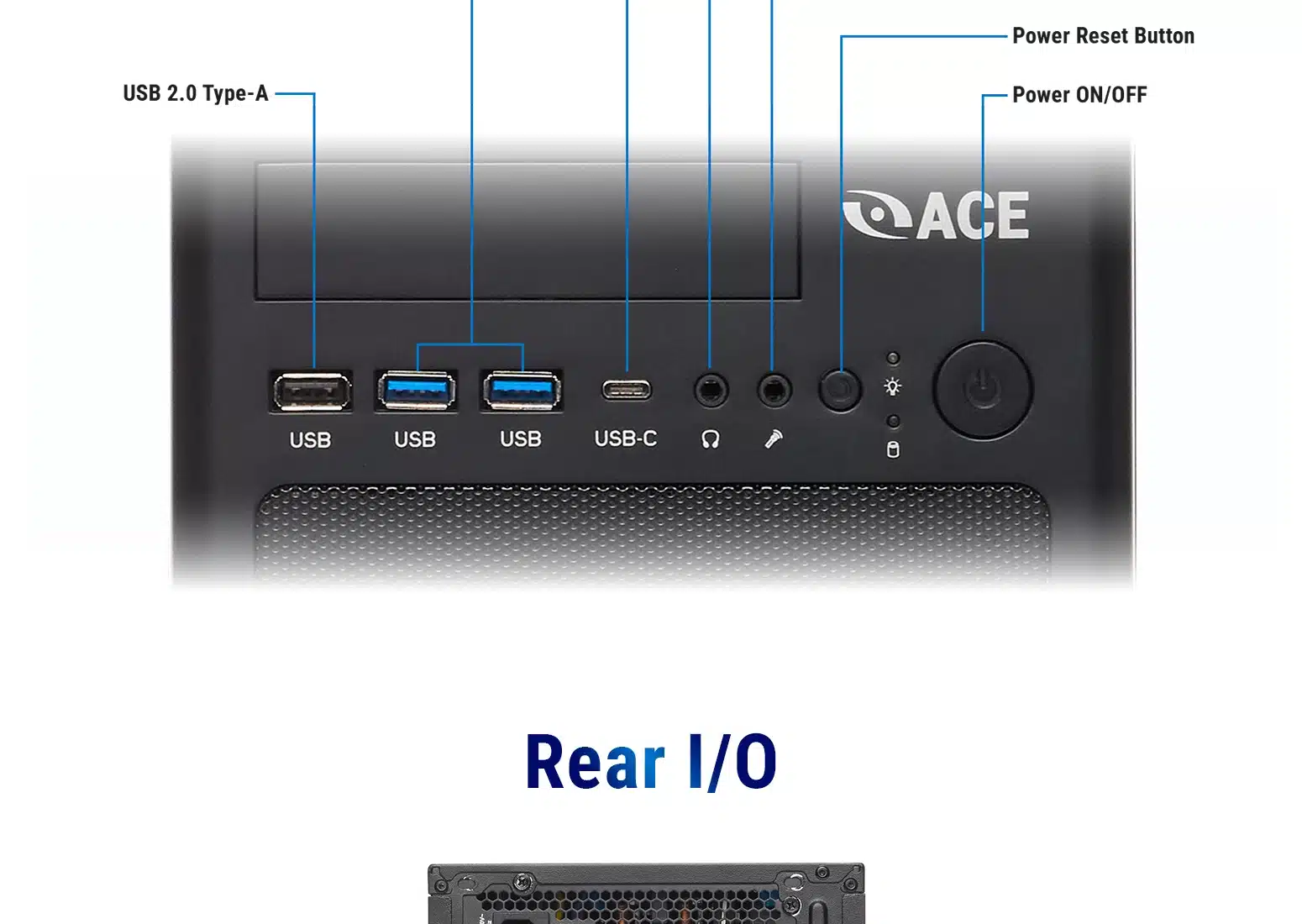

Front I/O
  • 1 x USB 2.0 Type-A
  • 2 x USB 3.1 Type-A
  • 1 x USB 3.1 Type-C
  • 1 x Headphone Jack
  • 1 x Microphone Jack

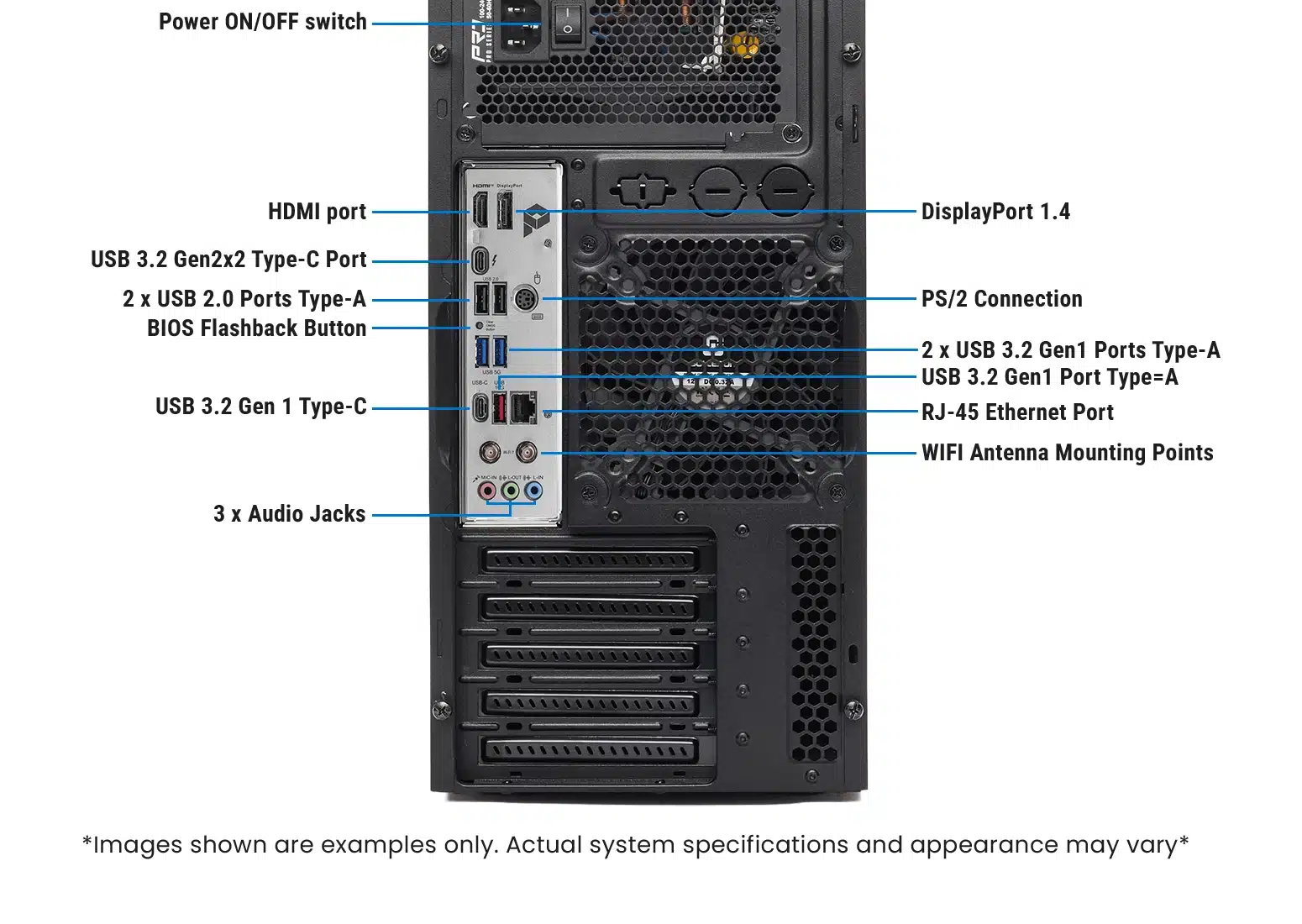

Rear I/O
  • 2 x Antenna Mounting Points
  • 1 x HDMI Port
  • 1 x DisplayPort 1.4
  • 1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s)
  • 3 x USB 3.2 Gen1 Ports
  • 2 x USB 2.0 Ports
  • 1 x RJ-45 LAN Port
  • 1 x BIOS Flashback Button
  • HD Audio Jacks: Line in / Front Speaker / Microphone
PSU
  • 500W 80+ Gold Rated Power Supply
Slots
  • 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode
  • 1 x PCIe 4.0 x4 Slot (PCIE2), supports x4 mode
  • 1 x M.2 Slot (Key E), supports type 2230 WiFi/BT PCIe WiFi module
  • 1 x M.2 Slot (Key M), supports type 2280 PCIe Gen5x4
  • 1 x M.2 Slot (Key M), supports type 2230/2242/2260/2280 PCIe 4.0 x4
  • 1 x M.2 Slot (Key M), supports type 2280 PCIe 4.0 x4
Misc
  • 1 x Accessory Bag
  • 1 x North American Power Cable
  • 1 x Standard 104-key USB wired keyboard and mouse
SKU
What’s Included
Warranty
×
